A5 UV Flatbed Printer

Mini A5 UV flatbed printer
Mini A5 UV flatbed printer

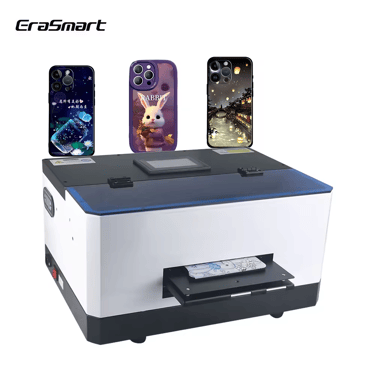

Mini Flatbed UV Printer with Epson L800, quickly prints A5 size images in 30-180 seconds. Suitable for mobile phone cases.

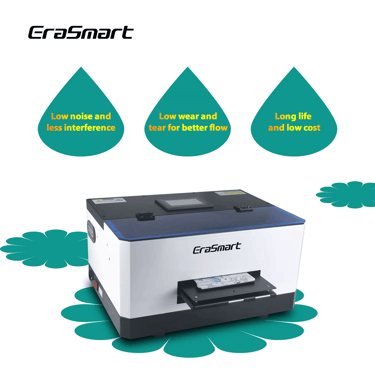

The A5 UV Flatbed Printer is a compact and mobile solution designed for high-quality, ultra-violet printing on a variety of hard surfaces. With its modest footprint accommodating materials up to A5 size (120 x 210mm), it's ideal for businesses or individuals requiring on-the-spot printing capabilities. The printer operates efficiently, completing prints ranging from approximately 30 to 180 seconds based on the complexity of the image.

At its core, the printer boasts a professional-grade Epson L800 print head which delivers outstanding resolution at 1440dpi, ensuring each detail is sharp and colors appear vibrant and true-to-life. This makes the device particularly well-suited for applications such as embellishing mobile phone cases, crafting personalized gift boxes, or producing small-scale oil paintings.

Versatile in nature, the A5 UV flatbed printer can adeptly handle various hard materials including metal, glass, wood, plastic and PVC – making it a valuable asset for custom print shops and creative studios seeking to expand their product offerings with high fidelity prints on unconventional mediums.

Specification

  • Usage: To print on hard material such as metal, glass, wood, PVC, plastic, acrylic, tpu etc.

  • Brand: EraSmart ( OEM available )

  • Type: Inkjet Printer

  • Print Resolution: 1440dpi

  • Plate Type: Flatbed Printer

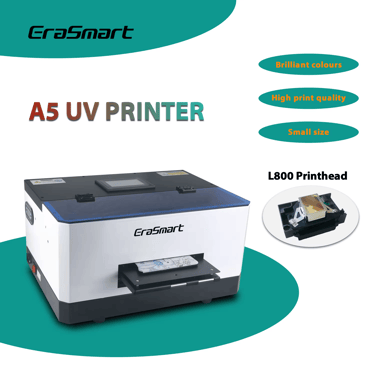

  • Print head: L800 Print Heads

  • Printing Head Cleaning: Auto Cleaning

  • Print Height: 0-15mm (measured with infrared ray)

  • Printing Media: Roll & Sheet Pet Film

  • Effect Print Size: A5 ( 120 x 210mm )

  • Printing Speed: 1440 dpi/ 1 min

About Ink

  • Ink color: CMYK+WW

  • Ink Type: UV ink

  • Ink supply system: CISS

  • Ink Consumption: 1㎡/20ml

Software

  • Software: AcroRIP

  • Supported OS: Win XP/ 7/ 10/ 11

  • File Format: tiff/ jpeg/ jpg/ png/ pdf/ eps etc.

  • USB Interface: USB 3.0

Equipment

  • Voltage: AC100-230V

  • Rated Power: 150W

  • Printing Environment: 15 - 30 °C

  • Relative Humidity: 40 - 60%

  • Net Weight: 19 KG

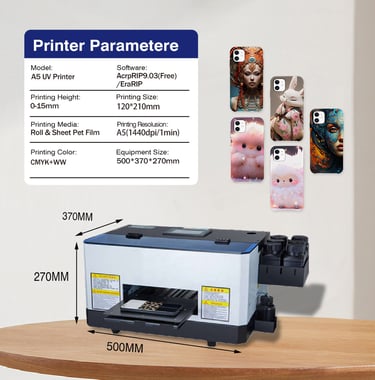

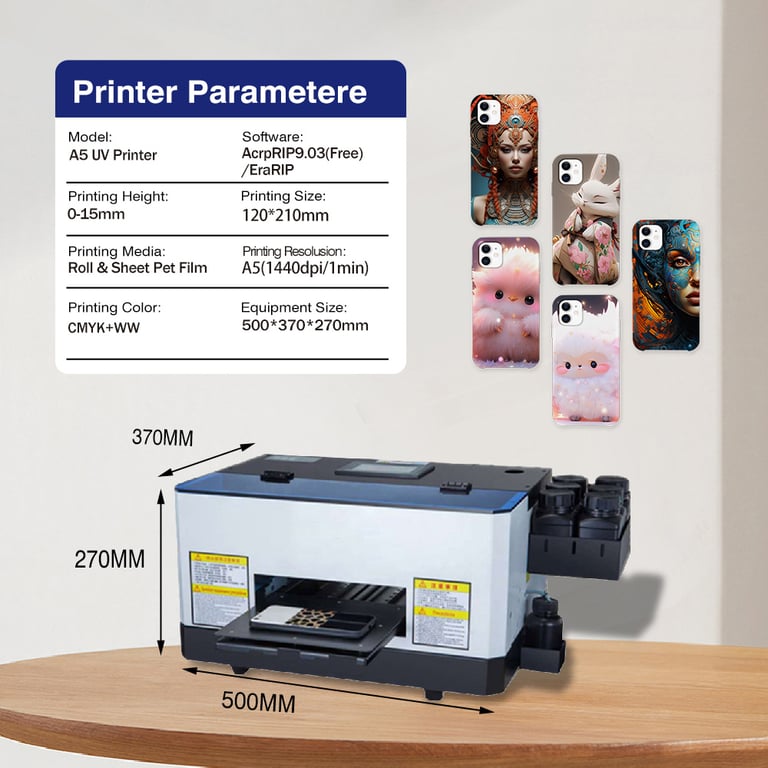

  • Equipment Dimension(L,W,H): 500 X 370 X 270mm

  • Package Dimension(L,W,H): 530 X 400 X 300mm

  • Package Weight: 30kg

  • Packaging Details: Wooden box

Warranty

  • Certificate: CE, FCC, RoHS

  • Warranty of core components: 1 Year

  • Core Components: Motor, PLC, Engine
